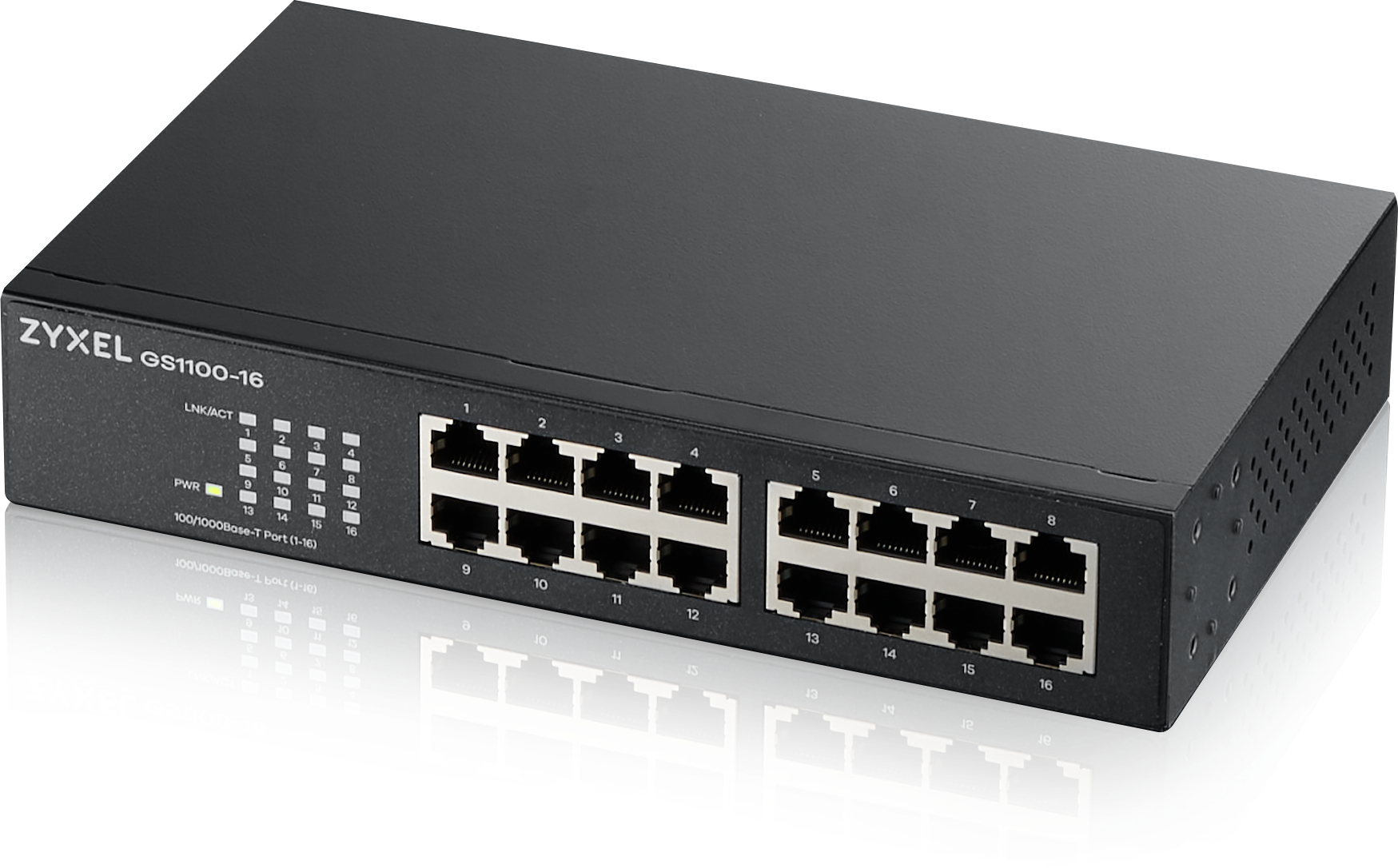

ZYXEL GS1100-16 16 PORT GIGABIT UNMANAGED SWITCH V3 (5Y WARRANTY)

Mac address table, entries:	8000
Switch type:	Unmanaged
Ports quantity:	16
Switching capacity, gbit/s:	32
Packet transfer speed:	28.8
Networking standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p
Broadcast storm control:	Yes
Colour of product:	Black
Mac address filtering:	Yes
Safety:	UL 60950-1, CSA 60950, EN 60950-1, IEC 60950-1, RoHS
Led indicators:	Link activity, Port status, Power, System
Drive device, buffer size, mb:	0.256
Networking features:	Gigabit Ethernet
Power requirements:	100 - 240 V AC, 50/60 Hz
Power consumption (max.), w:	10

Zyxel GS1100-16 – 16-Port Gigabit Switch for Silent and Energy-Efficient Networking

• 16 ports with Gigabit connection for fast and stable data transfer


• Fanless design – ideal for quiet office and work environments


• Energy-saving features: traffic, link, and cable length detection


• Plug & play setup – no configuration or management needed


• Metal housing with included wall-mount kit

Powerful, Silent, and Eco-Friendly Gigabit Networking Solution


The Zyxel GS1100-16 is a 16-port unmanaged Gigabit switch designed for office environments that demand reliable performance and silent operation. With a completely fanless design, it’s perfect for noise-sensitive areas such as meeting rooms or under-desk installations.



Save Energy Without Compromising Performance


The GS1100-16 includes several green networking features such as IEEE 802.3az Energy Efficient Ethernet, which reduces power consumption based on network traffic. It also detects inactive links and cable length to adjust power usage automatically – reducing operating costs and environmental impact.



Fast and Reliable Connectivity for All Users


All 16 ports support full gigabit speeds (1000 Mbps), ensuring smooth data transfers for file servers, NAS devices, workstations, and IP-based services. With a switching capacity of up to 32 Gbps, the GS1100-16 prevents bottlenecks in your local network.



Technical Specifications

• 16 x 10/100/1000 Mbps RJ-45 ports


• Switching capacity: 32 Gbps


• Forwarding rate: 23.8 Mpps


• Packet buffer: 525 KB


• MAC address table: 8K


• Jumbo frame support: 9 KB


• Auto MDI/MDI-X, IEEE 802.1p CoS, VLAN pass-through


• Power consumption: max. 10 W


• Internal power supply (100–240 V AC)


• Fanless, completely silent operation


• Dimensions: 215 x 133 x 42 mm


• Weight: 0.9 kg
