Teltonika Industrial Switch | TSW040 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 8 | PoE+ ports quantity 8 | Power supply type 2-pin industrial DC power socket
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
24 mėn.
24 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Pratęsta garantija | Kaina (su PVM) | |
|---|---|---|---|---|
| S1 | 3 vnt. 1-5 d.d. 3 / - vnt. | - | 63,23 € | |
| S2 | - / - | - | 65,48 € | |
| S5 | - / - | - | 64,18 € |
| Pagrindinės savybės |
|---|
| Gross depth (mm): | 75.00 mm |
| Gross height (mm): | 41.00 mm |
| Gross weight: | 0.40 kg |
| Gross width (mm): | 113.00 mm |
| Net weight: | 0.28 kg |
| Packing quantity: | 1.00 pc(s) |
| Paper/Pasteboard: | 100.00 g |
| Plastic (No PET): | 20.00 g |
| Tare weight (kg): | 0.12 kg |
| Volume (m3): | 0.00 m³ |
| Embeeded battery: | No |
| WEEE tax: | Yes |
| WEE classification: | CL109:6:2017-04-01 |
| Producer: | Teltonika |
| Palette Qty: | 2487 pc(s) |
| Switch type: | Unmanaged |
| Power supply type: | 2-pin industrial DC power socket |
| Power over Ethernet (PoE): | Yes |
| Producer product name: | TSW040 |
| Producer product family: | Industrial Switch |
| Predominant port type: | 10/100 Mbps (RJ-45) |
| 10/100 Mbps (RJ-45) ports quantity: | 8 |
| PoE+ ports quantity: | 8 |
| Form factor: | DIN rail mountable |
| Warranty: | 24 month(s) |
Aprašymas The Teltonika TSW040 is a robust and reliable hub designed for diverse networking needs, offering a capacity with a packet buffer size of 128 KB. It operates effectively in extreme temperatures, ranging from -40°C to 75°C, ensuring adaptability in challenging environments while maintaining a humidity range of 10 - 90% (non-condensing). The switch features eight 10/100 Base-T RJ-45 ports, providing connectivity options for various devices. With power over Ethernet (PoE+) capability of 30 W, this device can support multiple powered devices, enhancing overall efficiency and reducing cable clutter. Its DIN rail mountable form factor simplifies installation in various settings, making it a component of any network infrastructure. The TSW040 is engineered to meet multiple compliance standards, ensuring reliable performance and security. With non-blocking bandwidth of 20 Gbps and jumbo frame support up to 9216 bytes, this switch offers high-speed data transfer, making it suitable for demanding applications. The anodized aluminum housing provides durability while the status indicators keep users informed about link/activity and power status. Funkcijos Operates within a broad temperature range from -40°C to 75°C Eight 10/100 Base-T RJ-45 ports support diverse connectivity PoE+ capability with a budget of 30 W for powering devices Non-blocking bandwidth of 20 Gbps ensures efficient data flow DIN rail mountable design facilitates easy installation TSW040 8-port PoE+ Switch 8 X PoE-out RJ45 Eight PoE-out Ethernet ports with a total power budget of 240 W 2-pin Power Input Simple and suitable for industrial applications Integrated DIN Rail Easy mounting for plug-and-play deployment Wide Voltage Range 7-57 VDC, or 44-57 VDC for PoE-out |
| Gross depth (mm): | 75.00 mm |
| Gross height (mm): | 41.00 mm |
| Gross weight: | 0.40 kg |
| Gross width (mm): | 113.00 mm |
| Net weight: | 0.28 kg |
| Packing quantity: | 1.00 pc(s) |
| Paper/Pasteboard: | 100.00 g |
| Plastic (No PET): | 20.00 g |
| Tare weight (kg): | 0.12 kg |
| Volume (m3): | 0.00 m³ |
| Embeeded battery: | No |
| WEEE tax: | Yes |
| WEE classification: | CL109:6:2017-04-01 |
| Producer: | Teltonika |
| Palette Qty: | 2487 pc(s) |
| Switch type: | Unmanaged |
| Power supply type: | 2-pin industrial DC power socket |
| Power over Ethernet (PoE): | Yes |
| Producer product name: | TSW040 |
| Producer product family: | Industrial Switch |
| Predominant port type: | 10/100 Mbps (RJ-45) |
| 10/100 Mbps (RJ-45) ports quantity: | 8 |
| PoE+ ports quantity: | 8 |
| Form factor: | DIN rail mountable |
| Warranty: | 24 month(s) |
Aprašymas
The Teltonika TSW040 is a robust and reliable hub designed for diverse networking needs, offering a capacity with a packet buffer size of 128 KB. It operates effectively in extreme temperatures, ranging from -40°C to 75°C, ensuring adaptability in challenging environments while maintaining a humidity range of 10 - 90% (non-condensing). The switch features eight 10/100 Base-T RJ-45 ports, providing connectivity options for various devices. With power over Ethernet (PoE+) capability of 30 W, this device can support multiple powered devices, enhancing overall efficiency and reducing cable clutter.
Its DIN rail mountable form factor simplifies installation in various settings, making it a component of any network infrastructure. The TSW040 is engineered to meet multiple compliance standards, ensuring reliable performance and security. With non-blocking bandwidth of 20 Gbps and jumbo frame support up to 9216 bytes, this switch offers high-speed data transfer, making it suitable for demanding applications. The anodized aluminum housing provides durability while the status indicators keep users informed about link/activity and power status.
Funkcijos
Operates within a broad temperature range from -40°C to 75°C
Eight 10/100 Base-T RJ-45 ports support diverse connectivity
PoE+ capability with a budget of 30 W for powering devices
Non-blocking bandwidth of 20 Gbps ensures efficient data flow
DIN rail mountable design facilitates easy installation

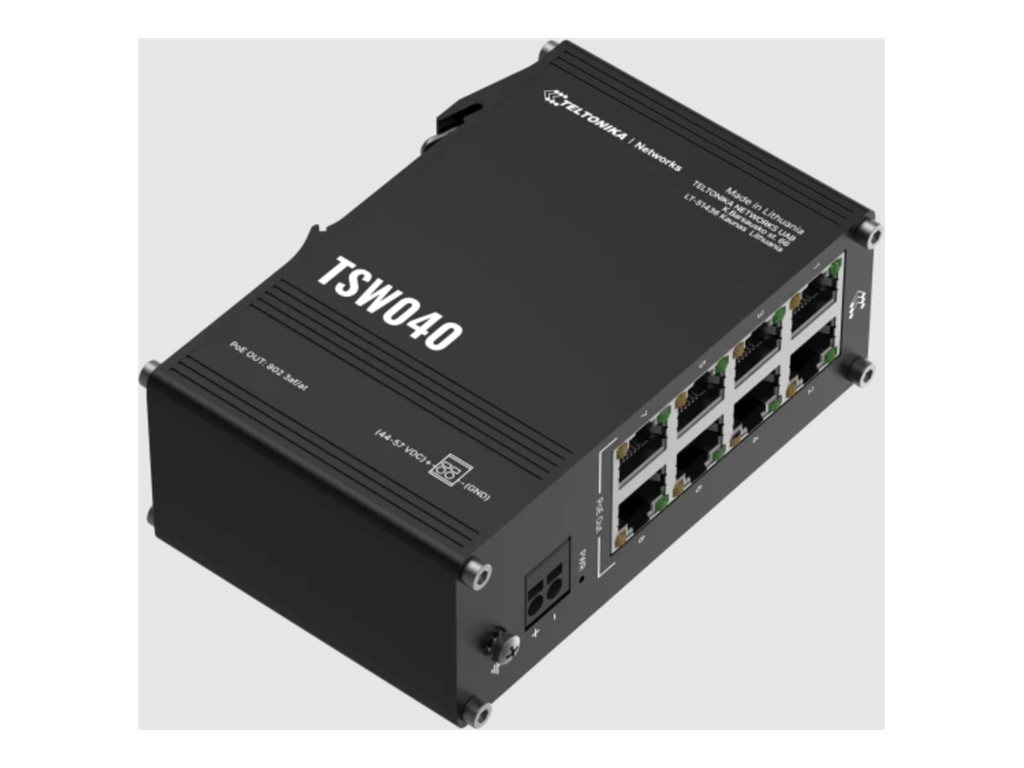

TSW040 8-port PoE+ Switch
8 X PoE-out RJ45
Eight PoE-out Ethernet ports with a total power budget of 240 W
2-pin Power Input
Simple and suitable for industrial applications
Integrated DIN Rail
Easy mounting for plug-and-play deployment
Wide Voltage Range
7-57 VDC, or 44-57 VDC for PoE-out
