Teltonika Industrial Switch | TSW040 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 8 | PoE+ ports quantity 8 | Power supply type 2-pin industrial DC power socket
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
24 mėn.
24 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Pratęsta garantija | Kaina (su PVM) | |
|---|---|---|---|---|
| S1 | 3 vnt. 1-5 d.d. 3 / - vnt. | - | 63,23 € | |
| S2 | - / - | - | 55,79 € | |
| S5 | 5 vnt. 1-3 d.d. 5 / - vnt. |
- | 59,30 € |
| Pagrindinės savybės |
|---|
| Gross depth (mm): | 75.00 mm |
| Gross height (mm): | 41.00 mm |
| Gross weight: | 0.40 kg |
| Gross width (mm): | 113.00 mm |
| Net weight: | 0.28 kg |
| Packing quantity: | 1.00 pc(s) |
| Paper/Pasteboard: | 100.00 g |
| Plastic (No PET): | 20.00 g |
| Tare weight (kg): | 0.12 kg |
| Volume (m3): | 0.00 m³ |
| Embeeded battery: | No |
| WEEE tax: | Yes |
| WEE classification: | CL109:6:2017-04-01 |
| Producer: | Teltonika |
| Palette Qty: | 2487 pc(s) |
| Switch type: | Unmanaged |
| Power supply type: | 2-pin industrial DC power socket |
| Power over Ethernet (PoE): | Yes |
| Producer product name: | TSW040 |
| Producer product family: | Industrial Switch |
| Predominant port type: | 10/100 Mbps (RJ-45) |
| 10/100 Mbps (RJ-45) ports quantity: | 8 |
| PoE+ ports quantity: | 8 |
| Form factor: | DIN rail mountable |
| Warranty: | 24 month(s) |
Aprašymas The Teltonika TSW040 switch is designed to meet the demands of modern network environments, offering a blend of performance, connectivity, and durability. With a non-blocking bandwidth of 20 Gbps, it ensures smooth data transmission, making it suitable for various applications. The switch features 8 PoE+ ports with a total PoE budget of 240 W, allowing for the easy deployment of power-dependent devices. Its durable anodized aluminum housing and IP30 rating make it ideal for use in industrial settings, providing a reliable networking solution that withstands harsh conditions. Compliance with numerous standards, including IEEE 802.3af/at and various EN and IEC standards, ensures broad compatibility and safety for your network. Additionally, its manageable features and status indicators simplify network monitoring and management, enhancing overall network reliability. Funkcijos 20 Gbps non-blocking bandwidth supports efficient data flow 8 PoE+ ports with a 240 W budget for simplified device deployment Anodized aluminum housing and IP30 rating for industrial durability Complies with a broad range of standards for wide compatibility Manageable features and status indicators for easy network monitoring TSW040 8-port PoE+ Switch 8 X PoE-out RJ45 Eight PoE-out Ethernet ports with a total power budget of 240 W 2-pin Power Input Simple and suitable for industrial applications Integrated DIN Rail Easy mounting for plug-and-play deployment Wide Voltage Range 7-57 VDC, or 44-57 VDC for PoE-out |
| Gross depth (mm): | 75.00 mm |
| Gross height (mm): | 41.00 mm |
| Gross weight: | 0.40 kg |
| Gross width (mm): | 113.00 mm |
| Net weight: | 0.28 kg |
| Packing quantity: | 1.00 pc(s) |
| Paper/Pasteboard: | 100.00 g |
| Plastic (No PET): | 20.00 g |
| Tare weight (kg): | 0.12 kg |
| Volume (m3): | 0.00 m³ |
| Embeeded battery: | No |
| WEEE tax: | Yes |
| WEE classification: | CL109:6:2017-04-01 |
| Producer: | Teltonika |
| Palette Qty: | 2487 pc(s) |
| Switch type: | Unmanaged |
| Power supply type: | 2-pin industrial DC power socket |
| Power over Ethernet (PoE): | Yes |
| Producer product name: | TSW040 |
| Producer product family: | Industrial Switch |
| Predominant port type: | 10/100 Mbps (RJ-45) |
| 10/100 Mbps (RJ-45) ports quantity: | 8 |
| PoE+ ports quantity: | 8 |
| Form factor: | DIN rail mountable |
| Warranty: | 24 month(s) |
Aprašymas
The Teltonika TSW040 switch is designed to meet the demands of modern network environments, offering a blend of performance, connectivity, and durability. With a non-blocking bandwidth of 20 Gbps, it ensures smooth data transmission, making it suitable for various applications. The switch features 8 PoE+ ports with a total PoE budget of 240 W, allowing for the easy deployment of power-dependent devices. Its durable anodized aluminum housing and IP30 rating make it ideal for use in industrial settings, providing a reliable networking solution that withstands harsh conditions. Compliance with numerous standards, including IEEE 802.3af/at and various EN and IEC standards, ensures broad compatibility and safety for your network. Additionally, its manageable features and status indicators simplify network monitoring and management, enhancing overall network reliability.
Funkcijos
20 Gbps non-blocking bandwidth supports efficient data flow
8 PoE+ ports with a 240 W budget for simplified device deployment
Anodized aluminum housing and IP30 rating for industrial durability
Complies with a broad range of standards for wide compatibility
Manageable features and status indicators for easy network monitoring

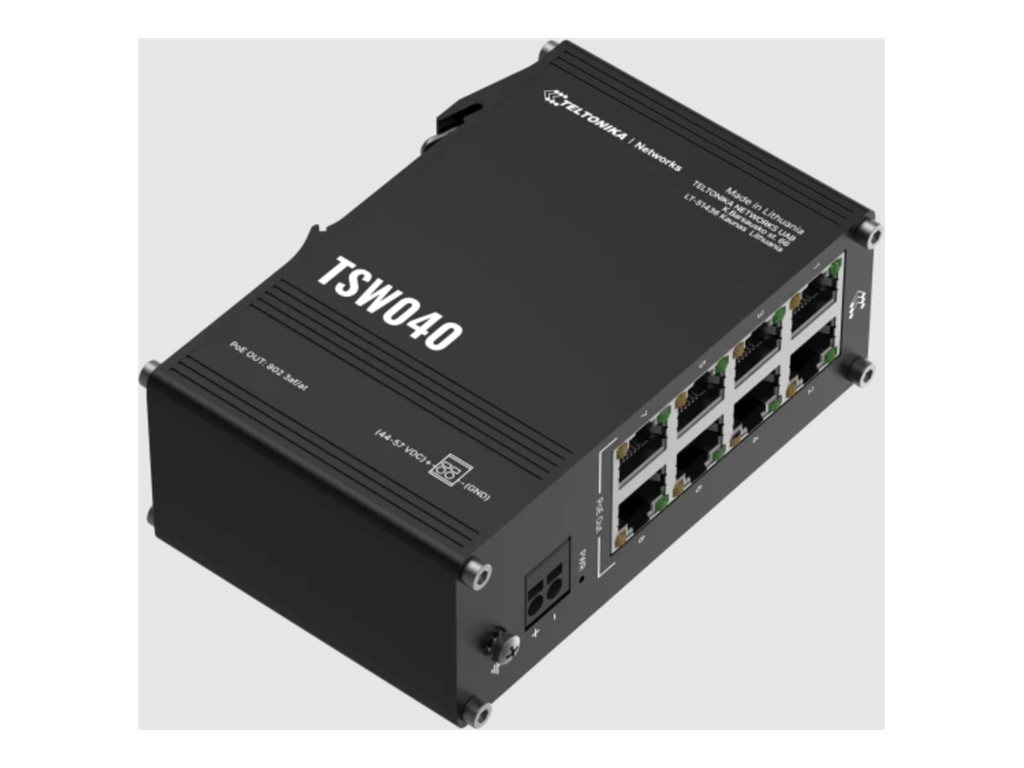

TSW040 8-port PoE+ Switch
8 X PoE-out RJ45
Eight PoE-out Ethernet ports with a total power budget of 240 W
2-pin Power Input
Simple and suitable for industrial applications
Integrated DIN Rail
Easy mounting for plug-and-play deployment
Wide Voltage Range
7-57 VDC, or 44-57 VDC for PoE-out
