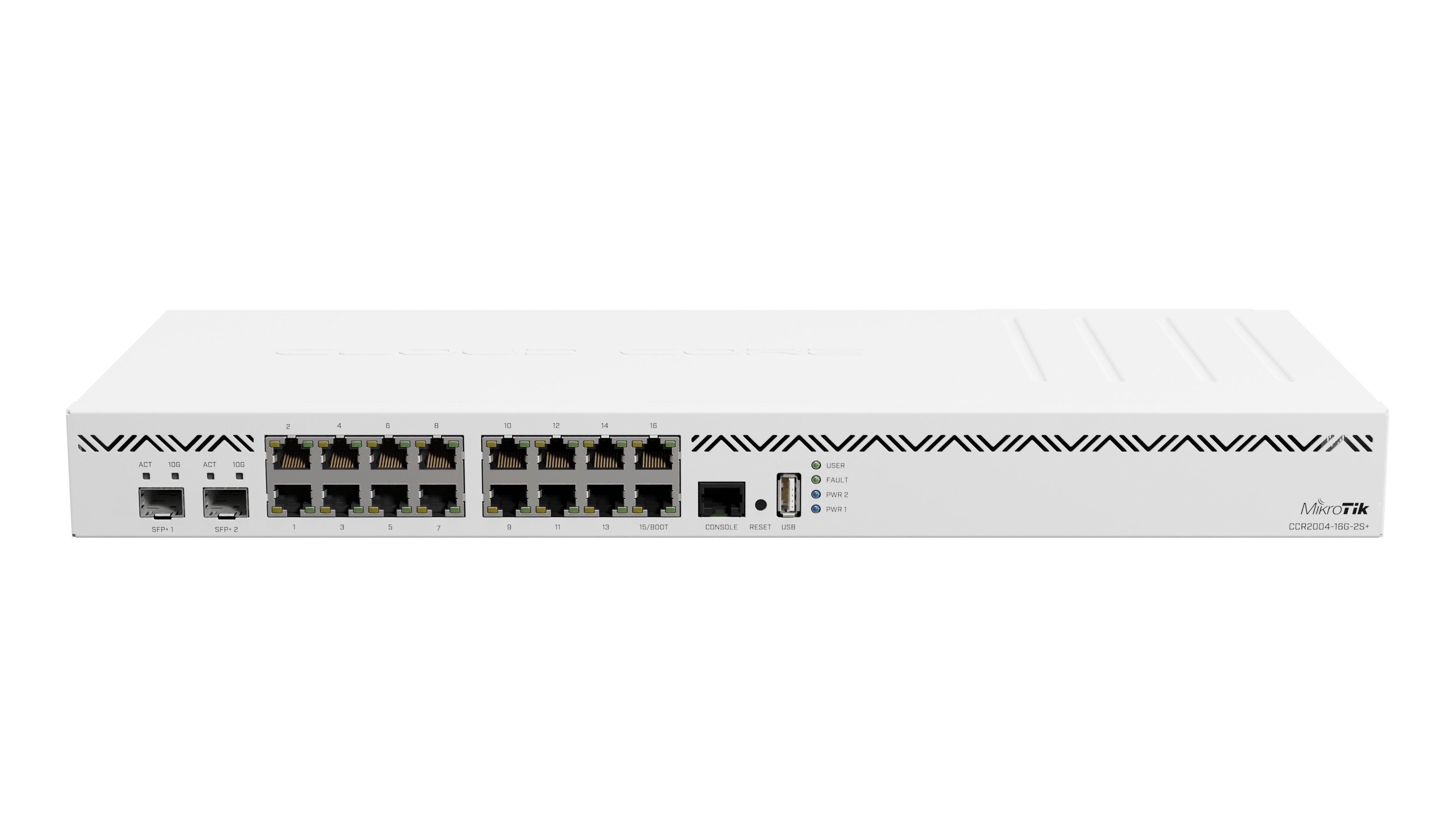

Mikrotik Cloud Core Router CCR2004-16G-2S+, 2x10G SFP+ ports, 16x Gigabit LAN ports, 1x RJ45 Serial port, 4 core CPU, 4 GB RAM, Dual redundant power supply, CPU and PCB temperature monitor, RouterOS L
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
12 mėn.
12 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Pratęsta garantija | Kaina (su PVM) | |
|---|---|---|---|---|
| S1 | - / - | 521,06 € | ||
| S2 | 7 vnt. 1-5 d.d. 7 / - vnt. |
534,24 € |
| Pagrindinės savybės |
|---|
| Gross weight: | 3.3 kg |
| Net weight: | 2.90 kg |
| Packing quantity: | 1.00 pc(s) |
| Embeeded battery: | No |
| WEEE tax: | Yes |
| WEE classification: | CL109:6:2017-04-01 |
| Gross depth (mm): | 420 mm |
| Gross width (mm): | 210 mm |
| Gross height (mm): | 55 mm |
| Volume (m3): | 0.004851 m³ |
| Paper/Pasteboard: | 360 g |
| Plastic (No PET): | 40 g |
| Tare weight (kg): | 0.4 kg |
| Producer product name: | CCR2004-16G-2S+ |
| Producer product family: | Cloud Core Router |
| USB ports quantity: | 1 |
| Processor model: | AL32400 |
| SFP+ ports quantity: | 2 |
| CPU frequency: | 1700 MHz |
| Software type: | RouterOS 6 (v7 only) |
| Power consumption (max): | 48 W |
| Storage capacity: | 128 MB |
| Operating temperature (T-T): | -20°C to 60°C °C |
| Wi-Fi data rate (max): | Mbit/s |
| Ethernet LAN data rates: | Mbit/s |
| Antenna type: | |
| Ethernet LAN (RJ-45) ports: | |
| Saleout: | |
| Wi-Fi band: | No Wi-Fi |
| Mesh Support: | |
| Mobile Broadband: | |
| MU-MiMO: | |
| Warranty: | 12 month(s) |
Aprašymas Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here's the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. But that's not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it's a win-win! The router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Funkcijos Various interface options including 10 Gb Ethernet for rapid data transmission Robust 1.7 GHz processor ensuring efficient network traffic management Complies with RoHS and EAC standards for environmentally friendly operation Rack-mountable design offering versatile installation solutions Power redundancy support enhancing operational reliability |
| Gross weight: | 3.3 kg |
| Net weight: | 2.90 kg |
| Packing quantity: | 1.00 pc(s) |
| Embeeded battery: | No |
| WEEE tax: | Yes |
| WEE classification: | CL109:6:2017-04-01 |
| Gross depth (mm): | 420 mm |
| Gross width (mm): | 210 mm |
| Gross height (mm): | 55 mm |
| Volume (m3): | 0.004851 m³ |
| Paper/Pasteboard: | 360 g |
| Plastic (No PET): | 40 g |
| Tare weight (kg): | 0.4 kg |
| Producer product name: | CCR2004-16G-2S+ |
| Producer product family: | Cloud Core Router |
| USB ports quantity: | 1 |
| Processor model: | AL32400 |
| SFP+ ports quantity: | 2 |
| CPU frequency: | 1700 MHz |
| Software type: | RouterOS 6 (v7 only) |
| Power consumption (max): | 48 W |
| Storage capacity: | 128 MB |
| Operating temperature (T-T): | -20°C to 60°C °C |
| Wi-Fi data rate (max): | Mbit/s |
| Ethernet LAN data rates: | Mbit/s |
| Antenna type: | |
| Ethernet LAN (RJ-45) ports: | |
| Saleout: | |
| Wi-Fi band: | No Wi-Fi |
| Mesh Support: | |
| Mobile Broadband: | |
| MU-MiMO: | |
| Warranty: | 12 month(s) |
Aprašymas
Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here's the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. But that's not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it's a win-win!
The router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line.
Funkcijos
Various interface options including 10 Gb Ethernet for rapid data transmission
Robust 1.7 GHz processor ensuring efficient network traffic management
Complies with RoHS and EAC standards for environmentally friendly operation
Rack-mountable design offering versatile installation solutions
Power redundancy support enhancing operational reliability
