LENOVO THINKSMART CORE G2 DL U5/16GB FULL ROOM KIT +IP CONTROLLER (MTR)

ThinkSmart Core Gen2 supports Microsoft Teams Rooms and Zoom Rooms platforms, enhancing collaboration through AI capabilities via Microsoft Copilot or Zoom AI Companion. AI-driven features such as intelligent participant framing, automatic voice recognition, smart name labels, meeting summaries, and real-time assistance are just some of the advanced capabilities available.

Versatile connectivity allows seamless integration with a wide range of devices, making installation and deployment easy in nearly any space. A key enhancement is the BYOM (bring your own meeting) USB-C connection, enabling you to leverage the room’s AV equipment by connecting directly with your own laptop—regardless of which UC platform you use!


The Lenovo IP Controller enables a clean and elegant installation of the meeting room touch display—only a single network cable is required at the table, easily routed even through tight cable ducts, and USB cable length limitations no longer restrict tidy cable management.

The cloud-based ThinkSmart Manager management service enables secure remote device management and troubleshooting, allowing you to leave the technology in capable hands and focus on meetings without delays or interruptions. Devices include Premier Support on-site service with next business day response time. These features make ThinkSmart devices the most reliable and user-friendly meeting room solution in the industry.

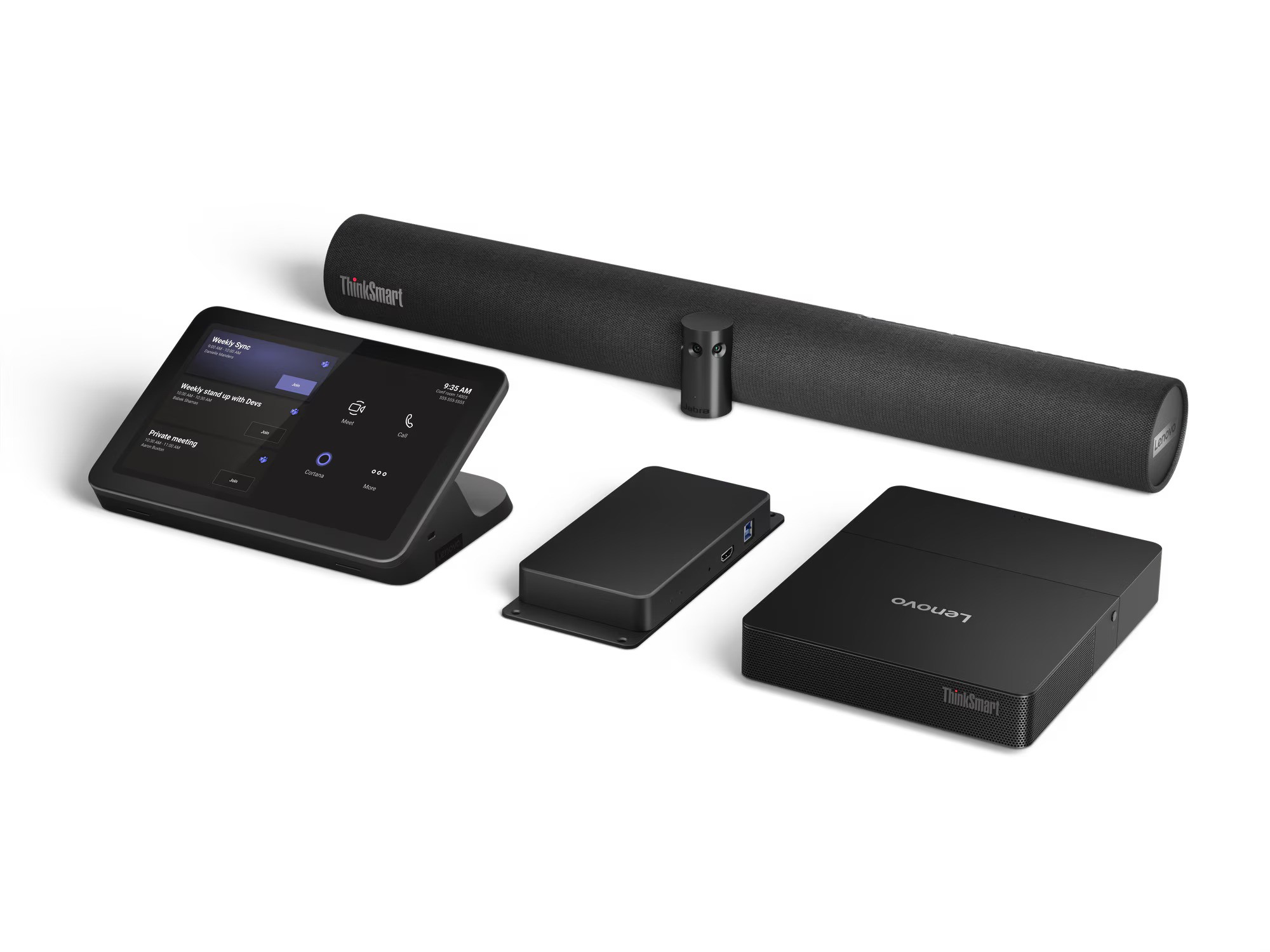

Lenovo ThinkSmart Core Gen2 + Lenovo IP Controller + ThinkSmart Bar180

Key features:

• Operating system Windows® 11 IoT Enterprise for Collaboration GAC 64bit


• Pre-installed Microsoft Teams Rooms


• Intel® vPro® management


• Intel® Core™ Ultra 5 135H


• Intel® Arc™ Graphics


• 2x 8GB SO-DIMM DDR5-5600


• 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0


• Gigabit Ethernet, Intel® Ethernet Connection I219-LM


• Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, vPro


• 170W power adapter with BYOM support


• Ports:




• 2x USB-C® (USB 10Gbps/3.2 Gen2), with 15W power supply and DisplayPort™ 1.4


• BYOM port 1x USB-C® in (USB 5Gbps/USB 3.2 Gen1), 45W power supply


• 3x USB-A (USB 5Gbps/USB 3.2 Gen1)


• 1x HDMI® in 2.1 TMDS


• 2x HDMI® out 2.1 TMDS


• 2x Ethernet (RJ-45)


• 1x DC in (slim tip)






• Core dimensions with cable management: 185x220x38mm, weight 1.01kg


• Core dimensions without cable management: 185x140x38mm, weight 0.86kg


• TPM 2.0


• Kensington lock slot


• VESA mount




• Lenovo IP Controller



  • 10.1" 16:10 HD display (1280x800), 10-point touch capability


  • Anti-glare and smudge-resistant surface


  • Brightness 340 cd/m²


  • IR motion sensor (<3m, +/- 45°)


  • Wall-mount ready


  • HDMI ingest port


  • Link box: USB-B, HDMI-out, RJ-45, power input


  • 5m CAT6 cable (max 100m)


  • Kensington® MiniSaver Security Slot


  • IP Controller dimensions: 248x151x100mm, weight 0.97kg






• ThinkSmart Bar 180



  • 2x 50mm woofers, 2x 20W tweeters


  • Frequency response 80Hz–20kHz


  • Stereo audio out


  • Eight microphones with 180° coverage


  • Frequency response 100Hz–8kHz


  • Sensitivity -37dBFS


  • Three cameras, 13MP resolution


  • 5x digital intelligent zoom, Vivid HDR, Intelligent Zoom, Virtual Director


  • Resolution 4K (3810x1080@30fps)


  • FOV 180°/54°


  • Ports: USB-A, USB-C, RJ-45


  • Dimensions: 650x80x125mm, weight 2.2kg






• Package contents:




• ThinkSmart Core Gen 2


• Lenovo IP Controller


• ThinkSmart Bar 180


• Removable cable management box


• VESA mounting plate and power adapter enclosure


• 3m USB-C BYOM cable








• Three-year Premier Support warranty
