LENOVO M90Q TINY G6 U5-245T/16GB/512SSD/W11P/3P

Operating system provided:	Windows 11 Pro
Connections:	USB-C
Connections:	USB-A
Connections:	Audio (3.5mm)
Connections:	HDMI
Connections:	DisplayPort
Connections:	Ethernet (RJ-45)
Total storage capacity:	512 GB SSD
Internal memory:	16 GB
Green certifications:	Energy Star 9.0
Green certifications:	ErP
Green certifications:	RoHS compliant
Green certifications:	TCO 10.0
Motherboard chipset:	Intel Q870
Memory slots (available):	2
Processor family:	Intel Core Ultra 5
Processor number of cores:	14
Graphic adapter:	Intel Graphics
Maximum internal memory, gb:	64 GB
Solid state disk drive type:	M.2 PCIe NVMe
Processor model:	Intel Core Ultra 5 245T (Max. 5.10GHz, 24M, 14C)
Power supply, w:	135
Processor manufacturer:	Intel
Internal memory type:	DDR5
Intel smart cache, mb:	24
Intel turbo boost, ghz:	5.10
Number of performance-cores:	6
Number of efficient-cores:	8
Bluetooth version:	5.4
Dimensions w x d x h, mm:	179 x 182.9 x 36.5
Weight, g:	1340
Usb-a (usb 3.2) ports quantity:	6
Usb-c (usb 3.2) ports quantity:	1
Hdmi ports quantity:	1
Displayports quantity:	2
Memory clock speed, mhz:	5600
Wlan type:	Intel Wi-Fi 7 BE200
Memory slots:	2
Intel virtualization technology:	VT-x / VT-d / VT-rp
Wlan antennas:	2x2
Integrated memory card reader:	No
Wireles lan (wlan):	Yes
Optical drive:	No
Raid controller:	No
Bluetooth:	Yes
Dedicated video memory (gb):	Uses system memory
Built-in speakers:	Yes
Npu:	Yes
Intel vpro:	Yes
Intel hyperthreading:	NO

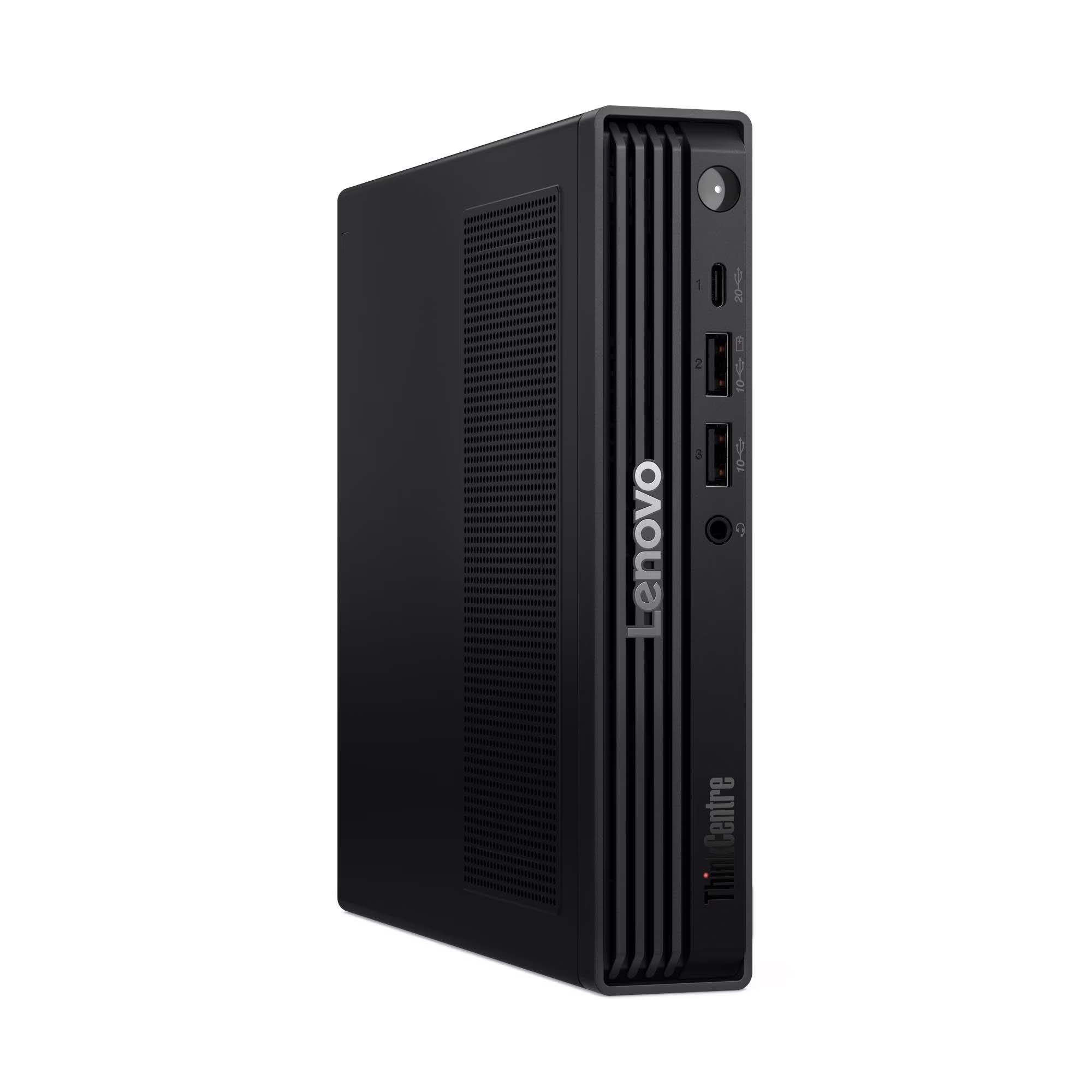

Lenovo ThinkCentre M90q G6 is a versatile business computer packed into a compact Tiny chassis. Despite its small size, the device features a free PCIe 4.0 x8 slot for expansion cards. Thanks to the two available M.2 2280 slots, internal SSD storage can be easily expanded. The device can dock directly with the Lenovo Tiny-in-One (TIO) monitor without the need for tools, creating a convenient all-in-one PC solution.




Key Features:

• Operating System: Windows 11 Pro 64-bit


• Processor: Intel Core U5-245T (14C/14T/24MB)


• Processor specifications: 6xP-core 2.2/5.1GHz, 8xE-core 1.7/4.5GHz


• Chipset: Intel Q870


• Graphics: Integrated Intel Graphics


• Intel® vPro® Enterprise


• Memory: 16GB DDR5 5600MHz SODIMM (1x16)


• Maximum Memory: 64GB 5600MHz (2x32GB)


• Storage: 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0


• Two free M.2 2280 SSD slots


• Internal 2W Premium speaker


• LAN Intel Gigabit Ethernet 100/1000


• WLAN Intel Wi-Fi 7 BE200, 802.11be 2x2 + BT 5.4, vPro


• Included: Lenovo USB keyboard and optical USB mouse


• Front Panel: 1xUSB-C Gen2x2, 2xUSB-A Gen2, 3.5mm headphone/microphone combo


• Back Panel: 2xDisplayPort 1.4, HDMI 2.1 TMDS, 1xUSB-A 3.2 Gen1, 3XUSB-A 3.2 Gen2, 1xRJ-45


• One free PCIe 4.0 x8 low profile expansion slot


• Integrated TPM 2.0 security chip, TCG/FIPS 140-2 certified


• Kensington security lock slot (3x7mm)


• Included: VESA Mount bracket


• External power supply: 135W 90%


• Military-grade durability: MIL-STD-810H


• Basic warranty: 3 years Premier NBD on-site


• Weight: 1.34kg

Lenovo CO2 Offset Gen2 emission compensation

• The carbon dioxide emissions generated during the manufacturing, transportation, and electricity consumption of this device throughout its lifecycle have been compensated through the global Climeco organization, supporting UN-approved environmental projects.

Environmental and energy certifications

• ENERGY STAR® 9.0, ErP Lot 3, RoHS compliant, TCO Certified 10.0
