LENOVO M90Q TINY G5 I7-14700T/32GB/2X512SSD/2XRJ45/W11P/3P

Raid levels:	0/1
Raid controller:	Yes
Green certifications:	ErP
Green certifications:	RoHS compliant
Green certifications:	TCO 9.0
Speaker power, w:	2
Operating system provided:	Windows 11 Pro
Connections:	Audio (3.5mm)
Connections:	DisplayPort
Connections:	Ethernet (RJ-45)
Connections:	HDMI
Connections:	USB-A (USB 3.x)
Connections:	USB-C (Gen2)
Processor family:	Intel Core i7
Processor number of cores:	20
Solid state disk drive type:	M.2 PCIe NVMe
Total storage capacity:	1 TB SSD
Internal memory:	32 GB
Maximum internal memory, gb:	64 GB
Graphic adapter:	Intel UHD Graphics 770
Processor clock speed, ghz:	1.30
Motherboard chipset:	Intel Q670
Processor model:	Intel Core i7-14700T (Max. 5.20GHz, 33M, 20C)
Power supply, w:	230
Processor manufacturer:	Intel
Dimensions w x d x h, mm:	179 x 182.9 x 36.5
Internal memory type:	DDR5
Weight, g:	1250
Memory clock speed, mhz:	5600
Intel virtualization technology:	VT-x / VT-d / VT-rp
Bluetooth version:	5.3
Graphics adapter family:	Intel UHD Graphics
Wlan type:	Intel Wi-Fi 6E AX211, 802.11ax 2x2
Usb-a (usb 3.2) ports quantity:	6
Intel smart cache, mb:	33
Intel turbo boost, ghz:	5.20
Hdmi ports quantity:	1
Memory slots:	2
Displayports quantity:	3
Wlan antennas:	2x2
Number of performance-cores:	8
Usb-c (usb 3.2) ports quantity:	1
Number of efficient-cores:	12
Green certifications:	EPEAT Gold
Green certifications:	Energy Star 8.0
Number of hard drives installed:	2
Wi-fi:	Yes
Built-in speakers:	Yes
Intel hyperthreading:	Yes
Dedicated video memory (gb):	Uses system memory
Intel vpro:	Yes
Cable lock slot:	Yes
Wireles lan (wlan):	Yes
Optical drive:	No
Integrated memory card reader:	No
Bluetooth:	Yes

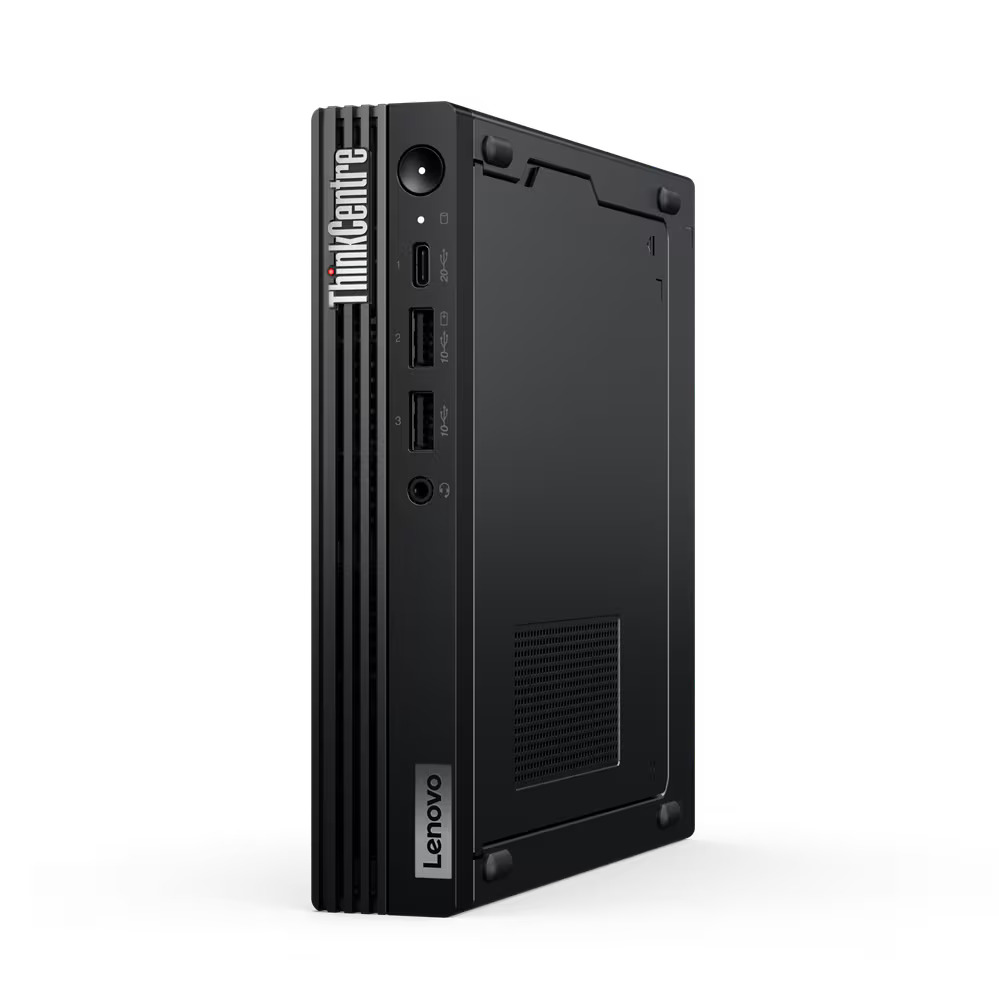

The Lenovo ThinkCentre M90q G5 is a powerful business computer packed into a compact Tiny chassis. Despite its small size, the device features a free PCIe 4.0 x8 slot for exciting expansion cards. It can dock directly with the Lenovo Tiny-in-One (TIO) monitor without the need for tools, creating a convenient all-in-one PC solution. A special feature of this model includes two RJ-45 Ethernet network ports and two installed 512GB SSD drives.




Key Features:

• Operating System: Windows 11 Pro 64-bit


• Processor: Intel Core i7-14700 (20C/28T/33MB)


• Processor specifications: 8xP-core 2.1/5.3GHz, 12xE-core 1.5/4.2GHz


• Chipset: Intel Q670


• Graphics: Integrated Intel UHD Graphics 770


• Intel® vPro® Enterprise


• Memory: 32GB DDR5 5600MHz SODIMM (2x16)


• Maximum Memory: 64GB 5600MHz (2x32GB)


• Drive #1: 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0


• Drive #2: 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0


• Internal 2W Premium speaker


• LAN #1 Intel Gigabit Ethernet 100/1000


• LAN #2 Realtek 2.5 Gigabit Ethernet RTL8125BGS


• WLAN Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT 5.3


• Included: Lenovo USB keyboard and optical USB mouse


• Front Panel: 1xUSB-C Gen2, 2xUSB-A Gen2, 3.5mm headphone/microphone combo


• Back Panel: 2xDisplayPort, HDMI 2.1 TMDS, 2xUSB-A Gen1, 2XUSB-A Gen2, RJ-45


• One free PCIe 4.0 x8 low profile expansion slot


• Integrated TPM 2.0 security chip, TCG/FIPS 140-2 certified


• Kensington security lock slot (3x7mm)


• Included: VESA Mount bracket


• External power supply: 230W 89%


• Military-grade durability: MIL-STD-810H


• Basic warranty: 3 years Premier NBD on-site


• Weight: 1.25kg

Lenovo CO2 Offset Gen2 emission compensation

• The carbon dioxide emissions generated during the manufacturing, transportation, and electricity consumption of this device throughout its lifecycle have been compensated through the global Climeco organization, supporting UN-approved environmental projects.

Environmental and energy certifications

• ENERGY STAR® 8.0, EPEAT™ Gold Registered, ErP Lot 3, RoHS compliant, TCO Certified 9.0
