LENOVO M90Q TINY G5 I5-14500T/16GB/512SSD/2XRJ45/W11P/3P

Raid levels:	0/1
Raid controller:	Yes
Operating system provided:	Windows 11 Pro
Connections:	USB-C (Gen2)
Connections:	USB-A (USB 3.x)
Connections:	Audio (3.5mm)
Connections:	HDMI
Connections:	DisplayPort
Connections:	Ethernet (RJ-45)
Processor family:	Intel Core i5
Processor number of cores:	14
Solid state disk drive type:	M.2 PCIe NVMe
Total storage capacity:	512 GB SSD
Internal memory:	16 GB
Maximum internal memory, gb:	64 GB
Graphic adapter:	Intel UHD Graphics 770
Processor clock speed, ghz:	1.70
Motherboard chipset:	Intel Q670
Memory slots (available):	1
Processor model:	Intel Core i5-14500T (Max. 4.80GHz, 24M, 14C)
Power supply, w:	90
Processor manufacturer:	Intel
Dimensions w x d x h, mm:	179 x 182.9 x 36.5
Bluetooth version:	5.3
Internal memory type:	DDR5
Memory clock speed, mhz:	4800
Weight, g:	1250
Intel virtualization technology:	VT-x / VT-d / VT-rp
Graphics adapter family:	Intel UHD Graphics
Wlan type:	Intel Wi-Fi 6E AX211, 802.11ax 2x2
Usb-a (usb 3.2) ports quantity:	6
Intel smart cache, mb:	24
Intel turbo boost, ghz:	4.80
Hdmi ports quantity:	1
Memory slots:	2
Displayports quantity:	1
Wlan antennas:	2x2
Number of performance-cores:	6
Number of efficient-cores:	8
Usb-c (usb 3.2) ports quantity:	1
Green certifications:	Energy Star 8.0
Green certifications:	EPEAT Gold
Green certifications:	ErP
Green certifications:	RoHS compliant
Green certifications:	TCO 9.0
Speaker power, w:	2
Wireles lan (wlan):	Yes
Optical drive:	No
Integrated memory card reader:	No
Bluetooth:	Yes
Intel hyperthreading:	Yes
Dedicated video memory (gb):	Uses system memory
Intel vpro:	Yes
Cable lock slot:	Yes
Wi-fi:	Yes
Built-in speakers:	Yes

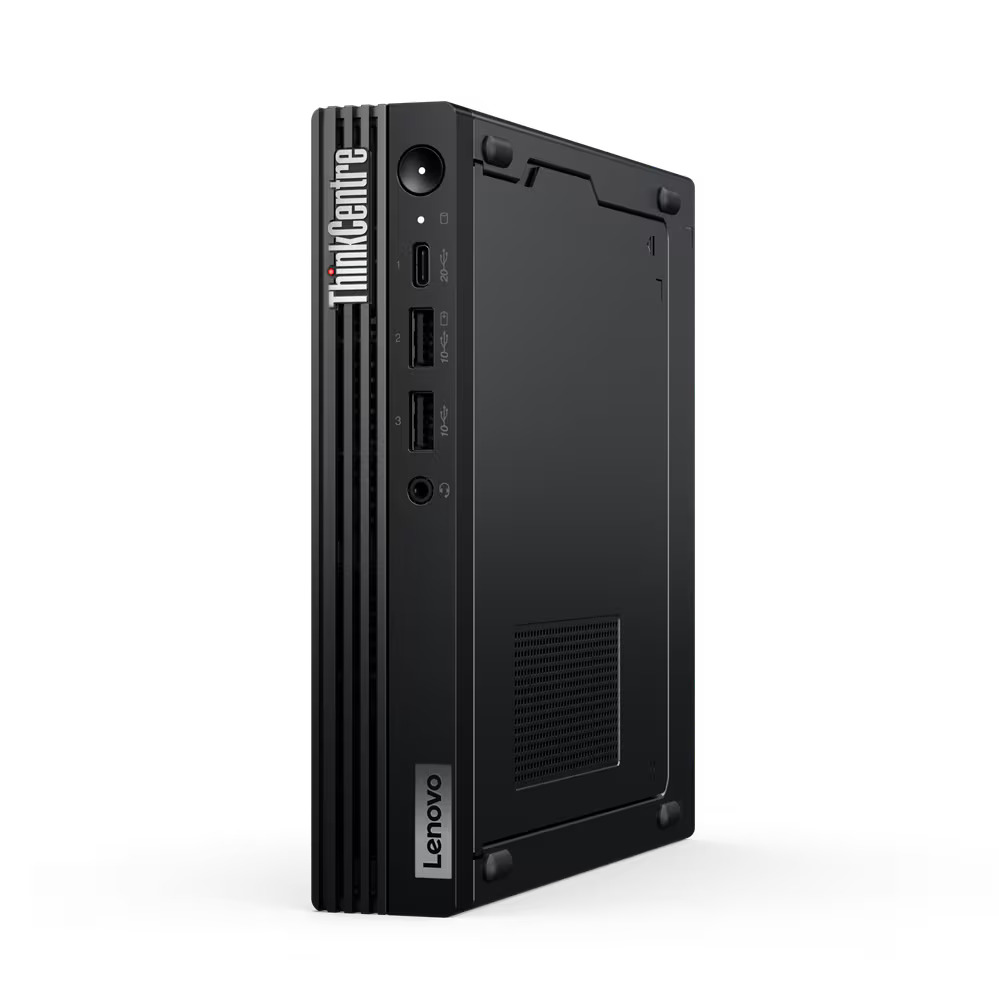

The Lenovo ThinkCentre M90q G5 is a versatile business computer packed into a compact Tiny chassis. Despite its small size, the device features a free PCIe 4.0 x8 slot for exciting expansion cards. Thanks to the available M.2 2280 slot, internal SSD storage can be easily expanded. The device can dock directly with the Lenovo Tiny-in-One (TIO) monitor without the need for tools, creating a convenient all-in-one PC solution. A special feature of this model is the inclusion of two RJ-45 Ethernet network ports.




Key Features:

• Operating System: Windows 11 Pro 64-bit


• Processor: Intel Core i5-14500T (14C/20T/24MB)


• Processor specifications: 6xP-core 1.7/4.8GHz, 8xE-core 1.2/3.4GHz


• Chipset: Intel Q670


• Graphics: Integrated Intel UHD Graphics 770


• Intel® vPro® Enterprise


• Memory: 16GB DDR5 5600MHz SODIMM (1x16)


• Maximum Memory: 64GB 5600MHz (2x32GB)


• Storage: 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0


• One free M.2 2280 SSD slot


• Internal 2W Premium speaker


• LAN #1 Intel Gigabit Ethernet 100/1000


• LAN #2 Realtek 2.5 Gigabit Ethernet RTL8125BGS


• WLAN Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT 5.3


• Included: Lenovo USB keyboard and optical USB mouse


• Front Panel: 1xUSB-C Gen2, 2xUSB-A Gen2, 3.5mm headphone/microphone combo


• Back Panel: 2xDisplayPort, HDMI 2.1 TMDS, 2xUSB-A Gen1, 2XUSB-A Gen2, RJ-45


• One free PCIe 4.0 x8 low profile expansion slot


• Integrated TPM 2.0 security chip, TCG/FIPS 140-2 certified


• Kensington security lock slot (3x7mm)


• Included: VESA Mount bracket


• External power supply: 90W 89%


• Military-grade durability: MIL-STD-810H


• Basic warranty: 3 years Premier NBD on-site


• Weight: 1.25kg

Lenovo CO2 Offset Gen2 emission compensation

• The carbon dioxide emissions generated during the manufacturing, transportation, and electricity consumption of this device throughout its lifecycle have been compensated through the global Climeco organization, supporting UN-approved environmental projects.

Environmental and energy certifications

• ENERGY STAR® 8.0, EPEAT™ Gold Registered, ErP Lot 3, RoHS compliant, TCO Certified 9.0
