| Formfactor: | Rack |

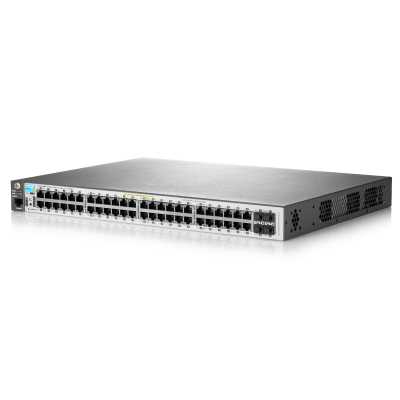

| Type: | HP 2530 Switch Series |
| Standard: | http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA4-4245ENW.pdf |
| Ethernettype: | Gigabit Ethernet |
| Uplinktype: | SFP |
| Networkports: | 48 |
| Interface: | 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full onl |
| Datatransferrate: | 1000 Mb Latency: < 2.3 μs (LIFO 64-byte packets)Throughput: 77.3 million ppsSwitching capacity: 104 Gbps |
| Networkcables: | http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA4-4245ENW.pdf |
| Duplex: | Half / Full |
| Layers: | 2 |
| Manage: | Managed |
| Macaddresstable: | 16 K |
| Vlan: | provide support for 512 VLANs and 4,094 VLAN IDs |
| Databuffer: | 3 MB |
| Security: | IEEE 802.1X Port Based Network Access Control RFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2866 RADIUS Accounting Secure Sockets Layer (SSL) |
| Mirroring: | Allows traffic to be mirrored on any port or a network analyzer to assist with diagnostics or detecting network attacks |
| Led: | Port link and activity LEDs can be turned off to conserve energy |
| Power: | 100-127/200-240 VAC |
| Poe: | - |
| Packagecontents: | - |
| Systemrequirements: | - |
| Width: | 443 mm |
| Depth: | 322.6 mm |
| Height: | 44.5 mm |
| Grossweight: | 6.900 kg |
| Warranty: | Lifetime |
