| Formfactor: | Desktop |

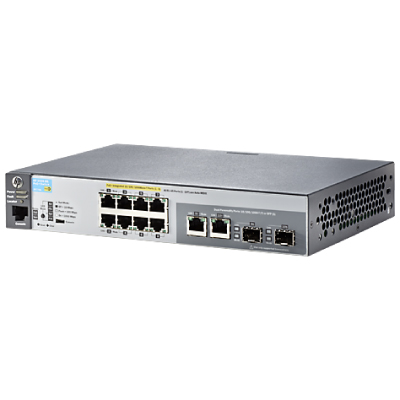

| Type: | HP 2530-8G-PoE+ Switch |
| Standard: | http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA4-4245ENW.pdf |
| Ethernettype: | Gigabit Ethernet |
| Uplinktype: | No |
| Networkports: | 8 |
| Interface: | 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Datatransferrate: | 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)</LI> 1000 Mb Latency: < 2.6 µs (LIFO 64-byte packets)Throughput: up to 14.8 Mpps (64-byte packets)Switching capacity: 20 Gb/s |
| Networkcables: | - |
| Duplex: | Half / Full |
| Layers: | 2 |
| Manage: | Managed |
| Macaddresstable: | 16 K |
| Vlan: | provide support for 512 VLANs and 4,094 VLAN IDs |
| Databuffer: | 1.5 MB |
| Security: | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
| Mirroring: | Allows traffic to be mirrored on any port or a network analyzer to assist with diagnostics or detecting network attacks |
| Led: | Port link and activity LEDs can be turned off to conserve energy |
| Power: | 100-127/200-240 VAC |
| Poe: | - |
| Packagecontents: | - |
| Systemrequirements: | - |
| Width: | 254 mm |
| Depth: | 159 mm |
| Height: | 44.5 mm |
| Grossweight: | 2.850 kg |
| Warranty: | 5 years |
