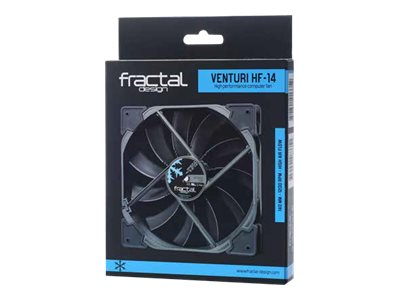

Fractal Design | FD-FAN-VENT-HF14-BK | Black, Grey | Fan
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
24 mėn.
24 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Pratęsta garantija | Kaina (su PVM) | |
|---|---|---|---|---|
| S1 | - / - | - | 25,95 € | |
| S2 | - / - | - | 21,71 € |
| Pagrindinės savybės |
|---|
| Cable length: | 0.5 m |
| Maximum air pressure: | 2.3 mmH2O |
| Airflow: | 10.4 m³/h |
| Package depth: | 3 cm |
| Fan thickness: | 2.5 cm |
| Weight: | 179 g |
| Colour of product: | Black, Grey |
| Noise level (high speed): | 31.7 dB |
| Package height: | 12.2 cm |
| Mounting hole pattern (WxD): | 105 x 105 mm |
| Type: | Fan |
| Voltage: | 12 V |
| Width: | 12 cm |
| Minimum air pressure: | 0.45 mmH2O |
| Height: | 12 cm |
| Maximum spin speed: | 1800 RPM |
| Package width: | 18 cm |
| Mean time between failures (MTBF): | 150000 h |
| Package weight: | 225 g |
| Power supply: | 1 W |
| Depth: | 2.5 cm |
| Maximum current: | 0.2 A |
| Minimum airflow: | 15.4 cfm |
| Noise level (low speed): | 10 dB |
| Suitable for: | Computer case |
| Fan diameter: | 12 cm |
| Maximum airflow: | 61.4 cfm |
| Minimum spin speed: | 400 RPM |
| Maximum cable length: | 500 mm m |
| PC connection: | 3-pin fan header |
| Output connections: | 3-pin fan header |
| Dimensions (WxDxH): | 140*140*25mm mm |
| Cable type: | Braided all-black ribbon wire |
| Noise level (max): | Acousutic noise 26.5 dB (A) dB |
| Warranty: | 24 month(s) |
| Producer product name: | FD-FAN-VENT-HF14-BK |
| Net weight: | 0.20 kg |
| Gross weight: | 0.353 kg |
| Packing quantity: | 1.00 pc(s) |
| Volume (m3): | 0.00071142 m³ |
| Tare weight (kg): | 0.153 kg |
| Gross depth (mm): | 167 mm |
| Gross width (mm): | 142 mm |
| Gross height (mm): | 30.00 mm |
| Plastic (No PET): | 7.00 g |
| Paper/Pasteboard: | 146.00 g |
| Embeeded battery: | No |
| WEEE tax: | No |
| Producer: | Fractal Design |
Aprašymas Designed with a variety of performance-increasing and noise-reducing features, this fan can move an amazing amount of air compared to other fans at the same, minimal noise level. The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials. Funkcijos Featuring true FDB-bearings, providing silent operation coupled with a long lifespan Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplastic polymer with fan geometry that is optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts Delivers high precision due to high grade materials used, permitting the distance between the blades and frame to be as small as 1.2mm, contributing to a higher performance fan Featuring a powerful motor to maintain a reliable speed Screws pass through the rubber only, not through plastic, therefore eliminating the chance of noise derived from rattling when in use |
| Cable length: | 0.5 m |
| Maximum air pressure: | 2.3 mmH2O |
| Airflow: | 10.4 m³/h |
| Package depth: | 3 cm |
| Fan thickness: | 2.5 cm |
| Weight: | 179 g |
| Colour of product: | Black, Grey |
| Noise level (high speed): | 31.7 dB |
| Package height: | 12.2 cm |
| Mounting hole pattern (WxD): | 105 x 105 mm |
| Type: | Fan |
| Voltage: | 12 V |
| Width: | 12 cm |
| Minimum air pressure: | 0.45 mmH2O |
| Height: | 12 cm |
| Maximum spin speed: | 1800 RPM |
| Package width: | 18 cm |
| Mean time between failures (MTBF): | 150000 h |
| Package weight: | 225 g |
| Power supply: | 1 W |
| Depth: | 2.5 cm |
| Maximum current: | 0.2 A |
| Minimum airflow: | 15.4 cfm |
| Noise level (low speed): | 10 dB |
| Suitable for: | Computer case |
| Fan diameter: | 12 cm |
| Maximum airflow: | 61.4 cfm |
| Minimum spin speed: | 400 RPM |
| Maximum cable length: | 500 mm m |
| PC connection: | 3-pin fan header |
| Output connections: | 3-pin fan header |
| Dimensions (WxDxH): | 140*140*25mm mm |
| Cable type: | Braided all-black ribbon wire |
| Noise level (max): | Acousutic noise 26.5 dB (A) dB |
| Warranty: | 24 month(s) |
| Producer product name: | FD-FAN-VENT-HF14-BK |
| Net weight: | 0.20 kg |
| Gross weight: | 0.353 kg |
| Packing quantity: | 1.00 pc(s) |
| Volume (m3): | 0.00071142 m³ |
| Tare weight (kg): | 0.153 kg |
| Gross depth (mm): | 167 mm |
| Gross width (mm): | 142 mm |
| Gross height (mm): | 30.00 mm |
| Plastic (No PET): | 7.00 g |
| Paper/Pasteboard: | 146.00 g |
| Embeeded battery: | No |
| WEEE tax: | No |
| Producer: | Fractal Design |
Aprašymas
Designed with a variety of performance-increasing and noise-reducing features, this fan can move an amazing amount of air compared to other fans at the same, minimal noise level.
The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
Funkcijos
Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing
Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplastic polymer with fan geometry that is optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence
Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts
Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts
Delivers high precision due to high grade materials used, permitting the distance between the blades and frame to be as small as 1.2mm, contributing to a higher performance fan
Featuring a powerful motor to maintain a reliable speed
Screws pass through the rubber only, not through plastic, therefore eliminating the chance of noise derived from rattling when in use
