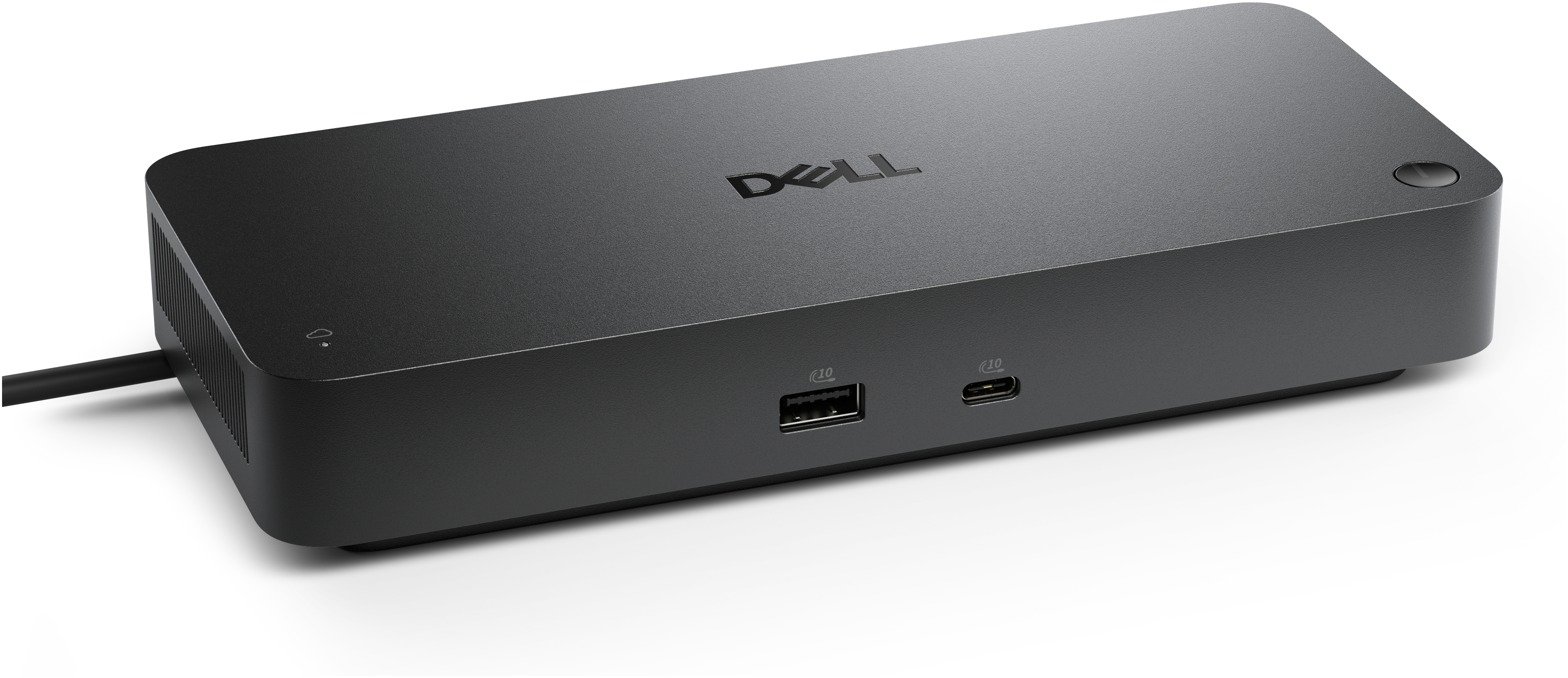

DELL PRO TB5 SMART DOCK - SD25TB5 (300W-USB-C-TB5, DP2.1, HDMI 2.1, RJ45)
Prekės kodas (MPN): DELL-SD25TB5
mėn.
| Sandėlis | Sandėlyje / Atvyksta | Pratęsta garantija | Kaina (su PVM) | |
|---|---|---|---|---|
| S5 | 3 vnt. 1-3 d.d. 3 / - vnt. | 505,37 € |
| Pagrindinės savybės |
|---|
| Connections: | Thunderbolt 5 |
| Connections: | DisplayPort |
| Connections: | HDMI |
| Connections: | USB-C |
| Connections: | USB-A |
| Connections: | Ethernet (RJ-45) |
| Maximum display resolution: | 7680 x 4320 |
| Power supply, w: | 330 |
| Displayports quantity: | 2 |
| Hdmi ports quantity: | 1 |
| Usb-c (usb 3.2) ports quantity: | 3 |
| Usb-a (usb 3.2) ports quantity: | 4 |
| Dimensions w x d x h, mm: | 205 x 90 x 35.25 |
| Weight, g: | 632 |
| Cable length, m: | 0.83 |
| Vesa-standard, mm: | 100 x 100 |
| Charging: | Yes |
| Thunderbolt ports quantity: | 2 |
| Compatible operating systems: | Windows 10 & 11
Ubuntu 24.04 RHEL 9.7+ ChromeOS 141 macOS |
| Cable lock slot: | Yes |
Dell Pro Thunderbolt 5 Smart Dock SD25TB5 The Dell Pro Thunderbolt 5 Smart Dock SD25TB5 is a high-end docking solution designed for demanding professional use and next-generation AI-PC environments. It supports up to four 4K displays and provides two Thunderbolt 5 ports along with up to 300 W power delivery for Dell Pro Premium- and Dell Pro Max notebooks (240 W for non-Dell, EPR support). This is the world’s most manageable and secure dock – supporting remote management without user presence through Dell Device Management Console, as well as Intel AMT management for vPro-compatible systems. WPA-3 (192-bit) encryption, Kernel DMA protection, and hardware-based tamper-resistant encryption ensure enterprise-grade security. The dock is made from at least 65% recycled material and ships in fully renewable or recyclable packaging. A new durable USB-C connector and dual-sided (left/right) cable routing enhance usability. The SD25TB5 is the perfect choice when performance, manageability, and environmental responsibility are required. Technical Specifications:
Display Support without DSC (DP 1.4):
Display Support with DSC (DP 1.4/2.1):
Display Support DP 2.1 & Thunderbolt 5 with DSC:
Ports and Connectivity:
Compatibility and Management:
Operating Systems:
Dimensions and Build:
Warranty and Package Contents:
|
| Connections: | Thunderbolt 5 |
| Connections: | DisplayPort |
| Connections: | HDMI |
| Connections: | USB-C |
| Connections: | USB-A |
| Connections: | Ethernet (RJ-45) |
| Maximum display resolution: | 7680 x 4320 |
| Power supply, w: | 330 |
| Displayports quantity: | 2 |
| Hdmi ports quantity: | 1 |
| Usb-c (usb 3.2) ports quantity: | 3 |
| Usb-a (usb 3.2) ports quantity: | 4 |
| Dimensions w x d x h, mm: | 205 x 90 x 35.25 |
| Weight, g: | 632 |
| Cable length, m: | 0.83 |
| Vesa-standard, mm: | 100 x 100 |
| Charging: | Yes |
| Thunderbolt ports quantity: | 2 |
| Compatible operating systems: | Windows 10 & 11
Ubuntu 24.04 RHEL 9.7+ ChromeOS 141 macOS |
| Cable lock slot: | Yes |
Dell Pro Thunderbolt 5 Smart Dock SD25TB5
The Dell Pro Thunderbolt 5 Smart Dock SD25TB5 is a high-end docking solution designed for demanding professional use and next-generation AI-PC environments. It supports up to four 4K displays and provides two Thunderbolt 5 ports along with up to 300 W power delivery for Dell Pro Premium- and Dell Pro Max notebooks (240 W for non-Dell, EPR support).
This is the world’s most manageable and secure dock – supporting remote management without user presence through Dell Device Management Console, as well as Intel AMT management for vPro-compatible systems. WPA-3 (192-bit) encryption, Kernel DMA protection, and hardware-based tamper-resistant encryption ensure enterprise-grade security.
The dock is made from at least 65% recycled material and ships in fully renewable or recyclable packaging. A new durable USB-C connector and dual-sided (left/right) cable routing enhance usability. The SD25TB5 is the perfect choice when performance, manageability, and environmental responsibility are required.
Technical Specifications:
- Interface: Thunderbolt 5 (USB-C)
- Power Delivery: 300 W (Dell), 240 W (non-Dell), EPR support
Display Support without DSC (DP 1.4):
- 4 x QHD (2560x1440) @60 Hz
- 3 x WQHD (3440x1440) @60 Hz
- 2 x 4K (3840x2160) @60 Hz
- 1 x 5K (5120x2160) @60 Hz
Display Support with DSC (DP 1.4/2.1):
- 4 x 4K (3840x2160) @60 Hz
- 3 x 4K (3840x2160) @60 Hz
- 2 x 6K (6144x3456) @60 Hz
- 1 x 8K (7680x4320) @60 Hz
Display Support DP 2.1 & Thunderbolt 5 with DSC:
- 4 x 4K (3840x2160) @120 Hz
- 3 x 4K (3840x2160) @120 Hz
- 2 x 6K (6144x3456) @60 Hz
- 1 x 8K (7680x4320) @60 Hz
Ports and Connectivity:
- 2 x Thunderbolt 5 (15 W, works even without PC connection)
- 2 x DisplayPort 2.1
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 (Data only)
- 1 x USB-C 3.2 Gen 2 Multi-Function DisplayPort 2.1 (7.5 W PowerShare)
- 4 x USB-A 3.2 Gen 2 (10 Gbps, PowerShare 4.5 W)
- 1 x USB-C 3.2 Gen 2 (10 Gbps, PowerShare 15 W)
- 1 x RJ45 2.5Gb Ethernet
- Power In (330 W power adapter)
Compatibility and Management:
- Intel AMT on vPro-compatible systems over Thunderbolt
- MAC Address Pass-Through, PXE Boot, WOL, Dock Power Button Sync, WLAN?LAN switching
- Dell Device Management Console (cloud-based out-of-band management, scheduled and forced FW updates, inventory, zero-touch provisioning)
Operating Systems:
- Windows 10 & 11
- Ubuntu 24.04
- RHEL 9.7+
- ChromeOS 141
- macOS
Dimensions and Build:
- 205 x 90 x 35.25 mm
- Weight: 632 g (without power adapter)
- Cable length: 0.83 m (dual-sided routing left/right)
- Security slots: Kensington & wedge
- VESA mount support: 100 x 100 mm
- Made from at least 65% post-consumer recycled plastic
Warranty and Package Contents:
- 3-year hardware warranty (Advanced Exchange)
- Optional 4- or 5-year extended warranty
- Package includes: dock, 330 W power adapter and cord, quick start guide, safety/environmental/regulatory information
