DELL PRO DOCK - WD25 (100W-USB-C, DP1.4, HDMI2.1, RJ45)

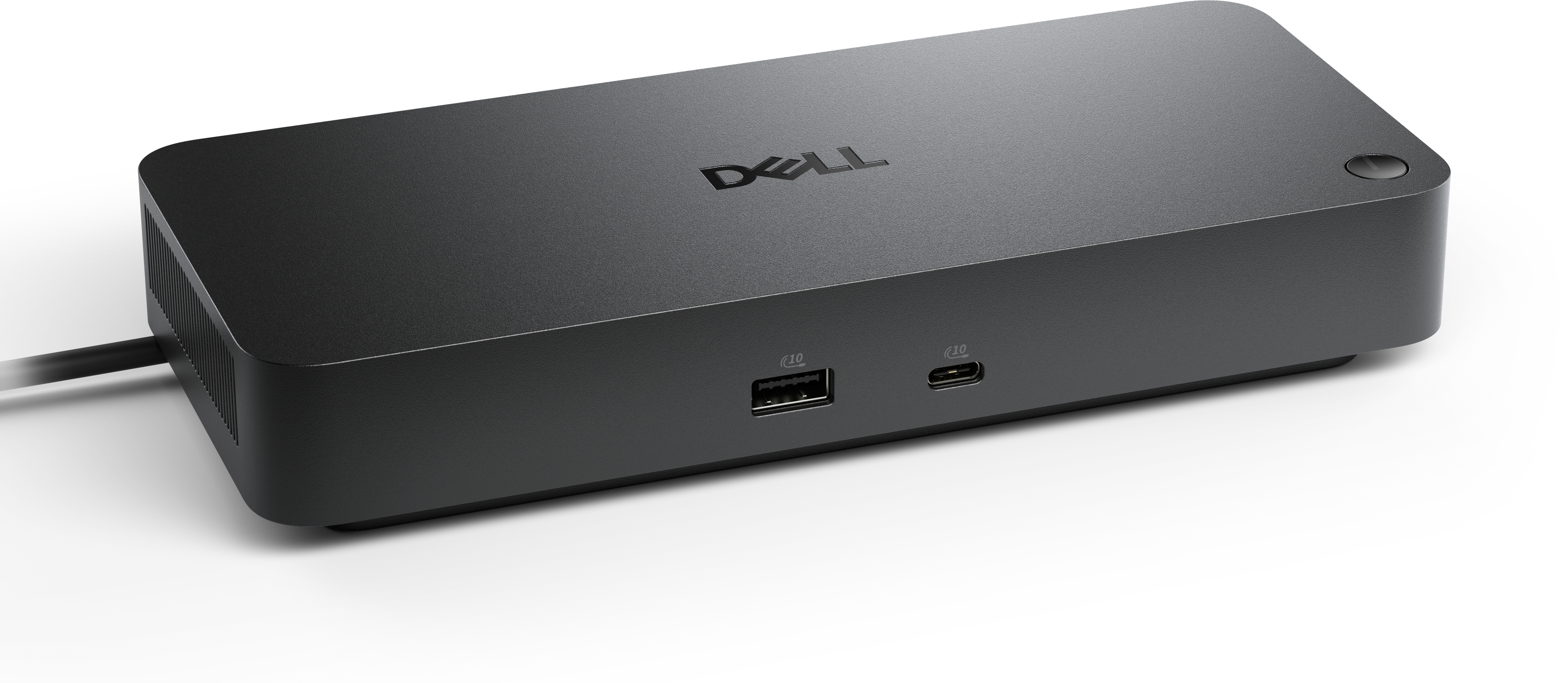

Dell Pro Dock WD25

The Dell Pro Dock WD25 is a versatile and powerful USB-C docking station designed to meet the needs of today’s modern workplace. It delivers up to 100W of power to Dell laptops and up to 96W to non-Dell systems, while supporting up to four high-resolution displays. WD25 is an excellent choice for both Dell and non-Dell laptops, significantly improving workspace efficiency and connectivity.

This dock is part of the world's most manageable commercial docking family and enables centralized device management via the cloud-based Dell Device Management Console. It also supports MAC Address Pass-Through, Power Button Sync, and secure remote boot features.

Environmental awareness is not forgotten: the WD25 is made from at least 65% recycled materials and consumes up to 72% less power in standby compared to previous models. It is shipped in 100% recyclable or renewable packaging.

• Interface: USB Type-C (DP Alt Mode)


• Power Delivery:



  • 100W for Dell laptops


  • 96W for non-Dell systems






• Display support without DSC (DP 1.4):



  • 4 x SXGA (1280 x 1024) @60 Hz


  • 3 x FHD (1920 x 1080) @60 Hz


  • 2 x QHD (2560 x 1440) @60 Hz


  • 1 x 4K (3840 x 2160) @60 Hz






• Display support with DSC (DP 1.4 / 2.1):



  • 4 x WQHD (3440 x 1440) @60 Hz


  • 3 x WQHD (3440 x 1440) @60 Hz


  • 2 x 5K (5120 x 2160) @60 Hz


  • 1 x 6K (6144 x 3456) @60 Hz





• 2 x DisplayPort 1.4


• 1 x HDMI 2.1


• 1 x USB-C 3.2 Gen 2 (DP 1.4)


• 4 x USB-A 3.2 Gen 2 (10 Gbps, PowerShare 4.5W)


• 1 x USB-C 3.2 Gen 2 (10 Gbps, PowerShare 15W)


• 1 x USB-C Multi-function DisplayPort (PowerShare 7.5W)


• 1 x 2.5 Gigabit Ethernet (RJ45)


• 1 x power input (130W adapter)

• MAC Address Pass-Through


• PXE Boot


• Power Button Sync


• Wake-On-LAN


• WLAN to LAN switching


• Kernel DMA protection


• Dell Firmware Utility


• Dell Display and Peripheral Manager


• Dell Command Update


• Dell Device Management Console (cloud-based)

• Windows 10 and 11


• Ubuntu 24.04


• Red Hat Enterprise Linux 9.6+


• ChromeOS 137

• Dimensions: 205 x 90 x 35.25 mm


• Weight: 550 g (without power adapter)


• Cable length: 0.9 m


• Security: Kensington & wedge lock slots


• Made from at least 65% recycled materials


• 100% recyclable or renewable packaging

• 3-year hardware warranty (Advanced Exchange)


• Optional 4- or 5-year extended warranty


• Package includes:



  • Dell Pro Dock WD25


  • 130W power adapter and power cable


  • Quick Start and Safety documentation
