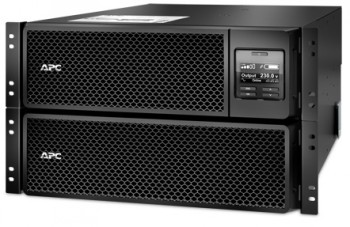

APC SMART-UPS SRT 8000VA RM 230V

Ups devices and accessories:	Yes
Weight, kg:	111.82
Form factor:	Rack
Height, mm:	263
Width, mm:	432
Depth, mm:	715
Connections:	Contact Closure
Connections:	RJ-45 10/100 Base-T
Connections:	RJ-45 Serial
Connections:	SmartSlot
Connections:	USB
Certification:	CE, CE Mark
Input connection:	Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Surge energy rating, j:	480
Noise level, db:	55
Rack height (units):	6
Output power, w:	8000
Nominal input voltage, v:	230 (220, 240)
Frequency range, hz:	50/60 +/- 3
Output power capacity (va):	8000
Nominal output voltage, v:	230 (220, 240)
Input frequency, hz:	45 - 65
Output interface:	1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers
Battery recharge time, h:	1.5
Maximum power, w:	8000
Runtime:	5 min (full load) / 16 min (half load)

APC SMART-UPS SRT 8000VA RM 230V


APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
Aprašymas
LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

Funkcijos
LCD graphics display - text and mimic diagrams that display modes of operation, system parameters and alarms
10/100 BaseT connection - connect the device to a network using a 10 or 100 BaseT connection
Green mode - patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
Battery failure notification - provides early-warning fault analysis on batteries enabling timely preventive maintenance
