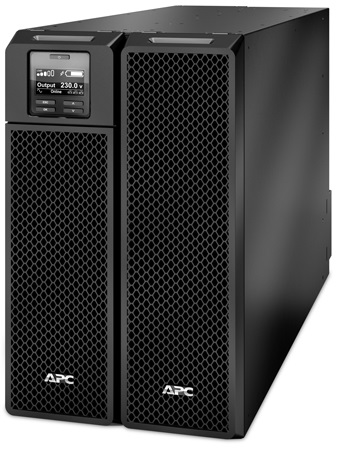

APC SMART-UPS SRT 8000VA 230V
Gamintojas: APC
Prekės kodas (MPN): SRT8KXLI
Prekės kodas (MPN): SRT8KXLI
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
36 mėn.
36 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Kaina (su PVM) | |
|---|---|---|---|
| S5 | - / - | 10146,56 € | |
| S2 | - / - | 10296,28 € |
| Pagrindinės savybės |
|---|
| Ups devices and accessories: | Yes |
| Form factor: | Tower |
| Height, mm: | 432 |
| Width, mm: | 263 |
| Depth, mm: | 715 |
| Connections: | Contact Closure |
| Connections: | RJ-45 10/100 Base-T |
| Connections: | RJ-45 Serial |
| Connections: | SmartSlot |
| Connections: | USB |
| Certification: | CE, CE Mark |
| Input connection: | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Surge energy rating, j: | 480 |
| Noise level, db: | 55 |
| Weight, kg: | 111.82 |
| Output power, w: | 8000 |
| Nominal input voltage, v: | 230 (220, 240) |
| Frequency range, hz: | 50/60 +/- 3 |
| Output power capacity (va): | 8000 |
| Nominal output voltage, v: | 230 (220, 240) |
| Input frequency, hz: | 45 - 65 |
| Output interface: | 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers |
| Battery recharge time, h: | 1.5 |
| Maximum power, w: | 8000 |
| Runtime: | 5 min (full load) / 16 min (half load) |
APC SMART-UPS SRT 8000VA 230V APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT. Aprašymas Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards. Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Funkcijos LCD graphics display - text and mimic diagrams that display modes of operation, system parameters and alarms 10/100 BaseT connection - connect the device to a network using a 10 or 100 BaseT connection Green mode - patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection Battery failure notification - provides early-warning fault analysis on batteries enabling timely preventive maintenance |
| Ups devices and accessories: | Yes |
| Form factor: | Tower |
| Height, mm: | 432 |
| Width, mm: | 263 |
| Depth, mm: | 715 |
| Connections: | Contact Closure |
| Connections: | RJ-45 10/100 Base-T |
| Connections: | RJ-45 Serial |
| Connections: | SmartSlot |
| Connections: | USB |
| Certification: | CE, CE Mark |
| Input connection: | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Surge energy rating, j: | 480 |
| Noise level, db: | 55 |
| Weight, kg: | 111.82 |
| Output power, w: | 8000 |
| Nominal input voltage, v: | 230 (220, 240) |
| Frequency range, hz: | 50/60 +/- 3 |
| Output power capacity (va): | 8000 |
| Nominal output voltage, v: | 230 (220, 240) |
| Input frequency, hz: | 45 - 65 |
| Output interface: | 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers |
| Battery recharge time, h: | 1.5 |
| Maximum power, w: | 8000 |
| Runtime: | 5 min (full load) / 16 min (half load) |
APC SMART-UPS SRT 8000VA 230V
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
Aprašymas
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Funkcijos
LCD graphics display - text and mimic diagrams that display modes of operation, system parameters and alarms
10/100 BaseT connection - connect the device to a network using a 10 or 100 BaseT connection
Green mode - patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
Battery failure notification - provides early-warning fault analysis on batteries enabling timely preventive maintenance
