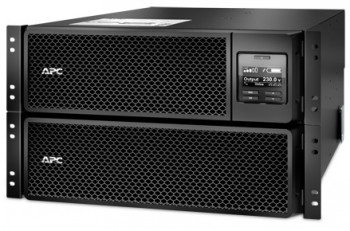

APC SMART-UPS SRT 10000VA RM 230V
Gamintojas: APC
Prekės kodas (MPN): SRT10KRMXLI
Prekės kodas (MPN): SRT10KRMXLI
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
36 mėn.
36 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Kaina (su PVM) | |
|---|---|---|---|
| S5 | - / - | 12716,89 € | |
| S2 | - / - | 12706,43 € |
| Pagrindinės savybės |
|---|
| Ups devices and accessories: | Yes |
| Output power, w: | 10000 |
| Nominal input voltage, v: | 230, 400 3PH (220, 240, 380, 415) |
| Frequency range, hz: | 50/60 +/- 3 |
| Output power capacity (va): | 10000 |
| Nominal output voltage, v: | 230 (220, 240) |
| Output interface: | 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers |
| Input frequency, hz: | 45 - 65 |
| Battery recharge time, h: | 1.5 |
| Maximum power, w: | 10000 |
| Runtime: | 3 min (full load) / 12 min (half load) |
| Connections: | Contact Closure |
| Connections: | RJ-45 10/100 Base-T |
| Connections: | RJ-45 Serial |
| Connections: | SmartSlot |
| Connections: | USB |
| Height, mm: | 263 |
| Width, mm: | 432 |
| Depth, mm: | 715 |
| Form factor: | Rack |
| Rack height (units): | 6 |
| Input connection: | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Certification: | CE, CE Mark |
| Weight, kg: | 111.82 |
| Noise level, db: | 55 |
| Surge energy rating, j: | 480 |
APC SMART-UPS SRT 10000VA RM 230V APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT. Aprašymas Text and mimic diagrams display modes of operation, system parameters and alarms. Operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Funkcijos LCD graphics display 10/100Base-T connection Green mode Battery failure notification |
| Ups devices and accessories: | Yes |
| Output power, w: | 10000 |
| Nominal input voltage, v: | 230, 400 3PH (220, 240, 380, 415) |
| Frequency range, hz: | 50/60 +/- 3 |
| Output power capacity (va): | 10000 |
| Nominal output voltage, v: | 230 (220, 240) |
| Output interface: | 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers |
| Input frequency, hz: | 45 - 65 |
| Battery recharge time, h: | 1.5 |
| Maximum power, w: | 10000 |
| Runtime: | 3 min (full load) / 12 min (half load) |
| Connections: | Contact Closure |
| Connections: | RJ-45 10/100 Base-T |
| Connections: | RJ-45 Serial |
| Connections: | SmartSlot |
| Connections: | USB |
| Height, mm: | 263 |
| Width, mm: | 432 |
| Depth, mm: | 715 |
| Form factor: | Rack |
| Rack height (units): | 6 |
| Input connection: | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Certification: | CE, CE Mark |
| Weight, kg: | 111.82 |
| Noise level, db: | 55 |
| Surge energy rating, j: | 480 |
APC SMART-UPS SRT 10000VA RM 230V
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
Aprašymas
Text and mimic diagrams display modes of operation, system parameters and alarms. Operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Funkcijos
LCD graphics display
10/100Base-T connection
Green mode
Battery failure notification
