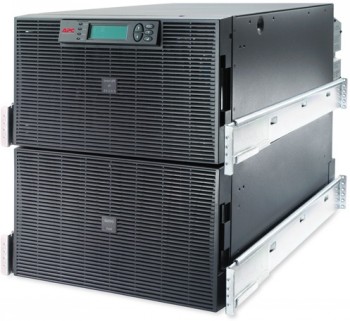

APC SMART-UPS RT 20KVA RM 230V
Gamintojas: APC
Prekės kodas (MPN): SURT20KRMXLI
Prekės kodas (MPN): SURT20KRMXLI
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
24 mėn.
24 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Kaina (su PVM) | |
|---|---|---|---|
| S5 | - / - | 20606,21 € | |
| S1 | - / - | 20225,81 € | |
| S2 | - / - | 20935,72 € |
| Pagrindinės savybės |
|---|
| Ups devices and accessories: | Yes |
| Input connection: | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Depth, mm: | 773 |
| Height, mm: | 533 |
| Connections: | DB-9 Serial |
| Connections: | RJ-45 10/100 Base-T |
| Connections: | Serial (RS-232) |
| Connections: | SmartSlot |
| Weight, kg: | 247.73 |
| Noise level, db: | 59 |
| Rack height (units): | 12 |
| Form factor: | Rack |
| Output power capacity (va): | 20000 |
| Frequency range, hz: | 50/60 +/- 3 |
| Nominal input voltage, v: | 230, 400 3PH, 220, 240 |
| Width, mm: | 432 |
| Input frequency, hz: | 40 - 70 |
| Nominal output voltage, v: | 230, 220, 240 |
| Output interface: | (1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G), (8) IEC 320 C19, (2) IEC Jumpers |
| Certification: | BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE |
| Battery recharge time, h: | 2.50 |
| Runtime: | 5 min (full load) / 15 min (half load) |
| Output power, w: | 16000 |
| Maximum power, w: | 16000 |
APC Smart-UPS RT 20kVA RM 230V Aprašymas Increases availability by allowing the UPS to be connected to two separate power sources. Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. Funkcijos Built-in static bypass, Internal bypass Less than 5% for full load Maintenance-free sealed lead-acid battery with suspended electrolyte Multi-function LCD status and control console Audible and visible alarms Full time multi-pole noise filtering 0.3% IEEE surge let-through Zero clamping response time |
| Ups devices and accessories: | Yes |
| Input connection: | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Depth, mm: | 773 |
| Height, mm: | 533 |
| Connections: | DB-9 Serial |
| Connections: | RJ-45 10/100 Base-T |
| Connections: | Serial (RS-232) |
| Connections: | SmartSlot |
| Weight, kg: | 247.73 |
| Noise level, db: | 59 |
| Rack height (units): | 12 |
| Form factor: | Rack |
| Output power capacity (va): | 20000 |
| Frequency range, hz: | 50/60 +/- 3 |
| Nominal input voltage, v: | 230, 400 3PH, 220, 240 |
| Width, mm: | 432 |
| Input frequency, hz: | 40 - 70 |
| Nominal output voltage, v: | 230, 220, 240 |
| Output interface: | (1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G), (8) IEC 320 C19, (2) IEC Jumpers |
| Certification: | BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE |
| Battery recharge time, h: | 2.50 |
| Runtime: | 5 min (full load) / 15 min (half load) |
| Output power, w: | 16000 |
| Maximum power, w: | 16000 |
APC Smart-UPS RT 20kVA RM 230V
Aprašymas
Increases availability by allowing the UPS to be connected to two separate power sources. Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Funkcijos
Built-in static bypass, Internal bypass
Less than 5% for full load
Maintenance-free sealed lead-acid battery with suspended electrolyte
Multi-function LCD status and control console
Audible and visible alarms
Full time multi-pole noise filtering
0.3% IEEE surge let-through
Zero clamping response time
