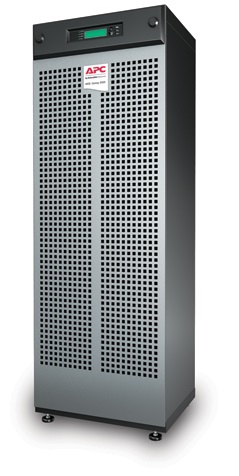

APC MGE GALAXY 3500 20KVA 400V W 3BTY
Gamintojas: APC
Prekės kodas (MPN): G35T20KH3B4S
Prekės kodas (MPN): G35T20KH3B4S
Galite pratęsti garantiją pasirinkdami papildomą terminą.
Garantija
24 mėn.
24 mėn.
| Sandėlis | Sandėlyje / Atvyksta | Kaina (su PVM) | |
|---|---|---|---|
| S5 | - / - | 14402,29 € |
| Pagrindinės savybės |
|---|
| Ups devices and accessories: | Yes |
| Output power, w: | 16000 |
| Maximum power, w: | 16000 |
| Output power capacity (va): | 20000 |
| Nominal output voltage, v: | 400, 380, 415 |
| Frequency range, hz: | 47 - 53 |
| Output interface: | 1 x Hard Wire 4-wire (3PH + G), 1 x Hard Wire 5-wire (3PH + N + G), 1 x Screw Terminals |
| Nominal input voltage, v: | 400, 380, 415 |
| Input frequency, hz: | 40 - 70 |
| Input connection: | Hard Wire 5-wire (3PH + N + G) |
| Connections: | Serial (RS-232) |
| Connections: | G35T |
| Form factor: | Tower |
| Input current, a: | 27 |
| Battery recharge time, h: | 5 |
| Height, mm: | 1491 |
| Width, mm: | 523 |
| Depth, mm: | 838 |
| Weight, kg: | 535 |
| Noise level, db: | 51.30 |
| Certification: | CE, EN 50091-2, EN/IEC 62040-3, EN/IEC 62040-1-1, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Runtime: | 12 min (full load) / 32 min (half load) |
MGE Galaxy 3500 20kVA 400V with 3 Battery Modules Expandable to 4, Start-up 5X8 |
| Ups devices and accessories: | Yes |
| Output power, w: | 16000 |
| Maximum power, w: | 16000 |
| Output power capacity (va): | 20000 |
| Nominal output voltage, v: | 400, 380, 415 |
| Frequency range, hz: | 47 - 53 |
| Output interface: | 1 x Hard Wire 4-wire (3PH + G), 1 x Hard Wire 5-wire (3PH + N + G), 1 x Screw Terminals |
| Nominal input voltage, v: | 400, 380, 415 |
| Input frequency, hz: | 40 - 70 |
| Input connection: | Hard Wire 5-wire (3PH + N + G) |
| Connections: | Serial (RS-232) |
| Connections: | G35T |
| Form factor: | Tower |
| Input current, a: | 27 |
| Battery recharge time, h: | 5 |
| Height, mm: | 1491 |
| Width, mm: | 523 |
| Depth, mm: | 838 |
| Weight, kg: | 535 |
| Noise level, db: | 51.30 |
| Certification: | CE, EN 50091-2, EN/IEC 62040-3, EN/IEC 62040-1-1, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Runtime: | 12 min (full load) / 32 min (half load) |
MGE Galaxy 3500 20kVA 400V with 3 Battery Modules Expandable to 4, Start-up 5X8
